Satellite settings

Setup4PC contains 3 configuration tabs.
Every change has to be confirmed by using the Apply button.
In the first Tab, "Satellite Settings" (fig. 1), there are different panels.

(Fig. 1)

The first thing to do is to add a new satellite in the Satellite List panel. These satellite parameters will be loaded every time it is needed. Press the Add button in order to get the parameter window.


(Fig. 2)

The values Lnb Settings and DiSEqC have to be set according to the specifications of the installed satellite dish and LNB. The default values are working with a large number of kits, which have a Universal LNB with two oscillators set to 9.750 and 10.6 GHz.

The DiSEqC must be set only in case of a Dual Feed satellite dish. The setting value depends on the installed system type.

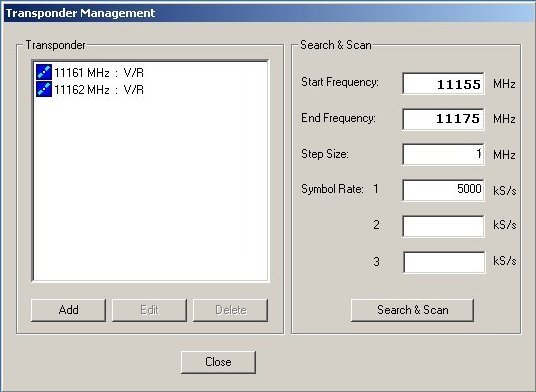

The frequency range used for multicast, broadcast and unicast transmissions should be set in the Transponder Management (Fig. 3) panel.

The required value for OPENSKYä is 11150 MHz Start Frequency to 11158 End Frequency.

The value for Symbol Rate is 22000 and the Step Size value can be 1 MHz

(Fig. 3)

If you press the Search & Scan button, the software starts searching all of the available PIDs for the specified frequency, but this does not set that automatically.

If you then press the Add button in the Transponder panel a new window appears (Fig. 4).

The default values work with a large number of satellite kits, having a Universal LNB with two oscillators set to 9.750 and 10.6 GHz.

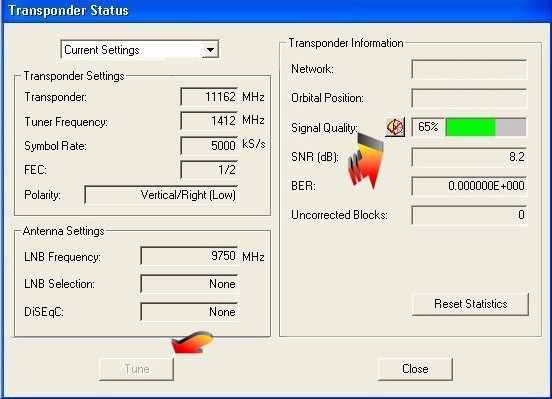

(Fig. 4)

Table 1: Values to set to use the OPENSKY™ services on

The other values depend on the installed satellite kit.

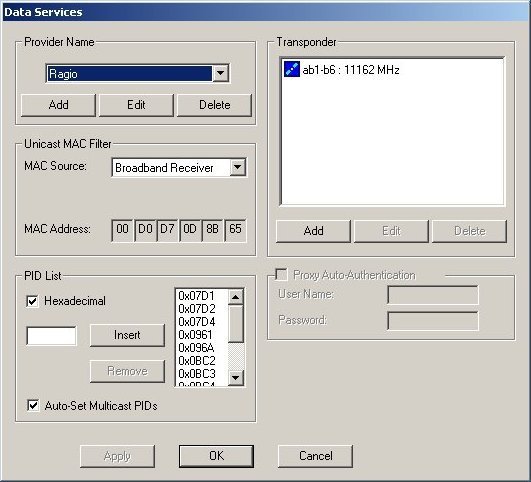

In the Data Services panel (see Fig. 5) select Add and insert the provider name (OPENSKY™ in this case).

(Fig. 5)

In the Unicast MAC Filter panel value a Broadband Receiver has to be set in the MAC Source.

In the PID List panel the following values can be set (either in hexadecimal or in decimal notation):

Decimal
Hexadecimal

Unicast
3010, 3011, 3012, 3013, 3021, 3022, 3023[1]
BC2, BC3, BC4, BC5, BCD, BCE, BCF
Multicast Push
2401, 2410
961, 96A
Multicast Streaming
2001, 2004, 2010
7D1, 7D4, 7DA

[1] PID assigned by Eutelsat reseller at the registration to access the Unicast services.

In this panel the DVB card MAC address is also displayed.

In the Transponder panel press the Add button to set the name of Transponder
(“11150” in this case, as in Figure 6).

(Fig. 6)

This operation has to be done for each available transponder.

In the “Statistics” tab (Fig. 7), it is possible to see the active PIDs (in hexadecimal value) and the statistics for each PID in use.

(Fig. 7)

In the “Options” tab, it is possible to set advanced options about TV settings.
